6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Chongqing Linglong Electronic Co., Ltd.
Contact Now

6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Brand Name : LNLON

Model Number : B0625L-066678999-2001

Certification : ISO9001, ISO14001, QC080000, RoHS

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T

Supply Ability : 50000pcs per month

Delivery Time : 20 days

Packaging Details : 465*280*200mm carton with 4000pcs

Size : coin 6*2.53mm

Voltage : 3V DC

Current : 80 mA Max

Output Power : 0.24W

Speed : 13000±3000 rpm

Vibration force : 0.3G @100g jig

Response time : about 80ms

Life : 3.0V,2S on,1S off,500000 cycles

Commutation : Brushless

Usage : cell phone, watch, brachet, cosmetic, electronic cigarette

Product name : cell phone vibration motor

Contact Now

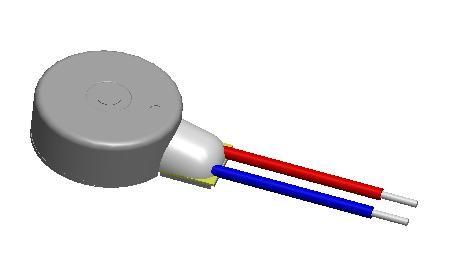

6mm long life low current 3v super small cell phone vibration motor

Product Information:

model B0625L-066678999-2001
size Φ6*2.53mm
rated voltage 3.0V
starting voltage 2.5V DC Max
operating voltage 2.7V~3.7V DC
speed 13000±3000 rpm
current 80 mA Max
Vibration Strength 0.3G Min
response time about 80mS
life 3.0V,2S on,1S off,500000 cycles


6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Outline drawing:

6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Typical Application:

This cell phone vibration motor is used for cell phone, watch, brachet, cosmetic, electronic cigarette, etc.

Product Features of this cell phone vibration motor:

Smallest diameter
Low current and outpower
Long lifetime

Except the diameter 6mm brushless motor, we also have many other micro dc vibration motors, diameter 7mm, 8mm and 10mm coin type motor.

Certification:

This cell phone vibration motor is certificated for ISO9001, ISO14001, GBT 28001,QC080000,RoHS.

6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Major Customer:

Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...

Our Main Products:

Except this cell phone vibration motor, we also have the following series:

6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

About US:

Our company is engaged in the development, manufacturing and marketing of micro vibration motor since 2003 with 0.18 billion annual output, covering an area of 35,000sqm.
Linglong has its own independent R&D team for vibration motor and automation equipment, which enhance to develop new product and lower cost. Also the mature and advanced production lines guarantee large capacity and good quality. We have built a complete system for process, management and sales-service to better serve our clients.

6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Workshop:

6mm Long Life Low Current 3v Mini Vibration Motor 0.24W Coin 6 * 2.53mm

Package&Shipping:

1. 465*280*200mm carton with 4000pcs.

2. We ship by Fedex, DHL, UPS, TNT, customer paying for the freight.

FAQ:
1. How can I get sample or place order?
To confirm the product specification at first, then we can send you datasheet and free samples for test. You can
send us order if sample without problem. You can contact us by anyway, email, skype, wechat, or phone.

2. Do you have MOQ?

We do not have MOQ limit, and accept small quanity order.

3. What is your terms for delivery and payment?
EXW, FOB, CFR, CPT for delivery; T/T, credit card or paypal for payment.

For more cell phone vibration motors, please contact us.
